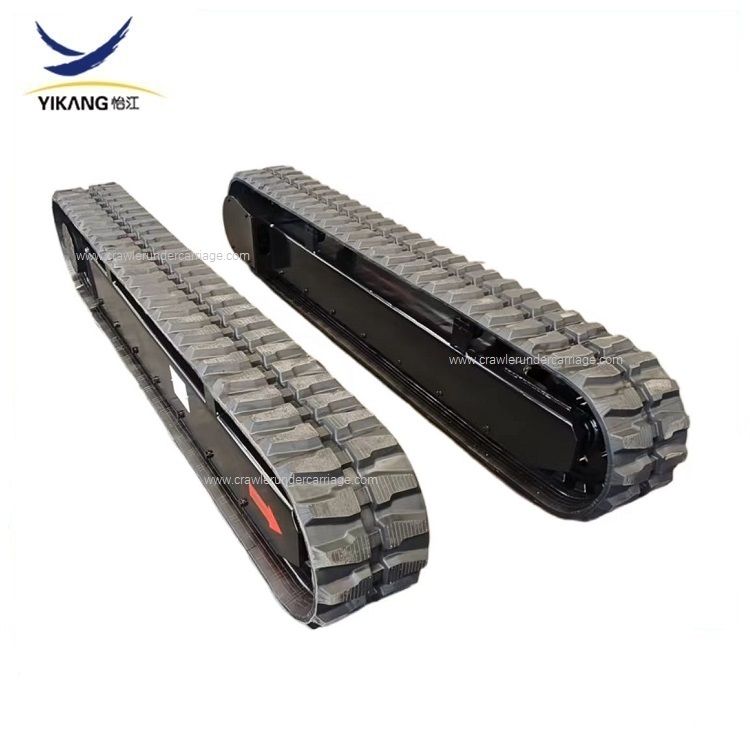

Hydraulic rubber undercarriage with extended track for crawler machiner
Yijiang Company can customize production according to your requirements for installing equipment, load capacty(can be 0.5-20 tons), size, middle structural parts are based on your equipment requirements to carry out personalized design and production.The product is designed with extended track, suitable for crawler carrier vehicles .

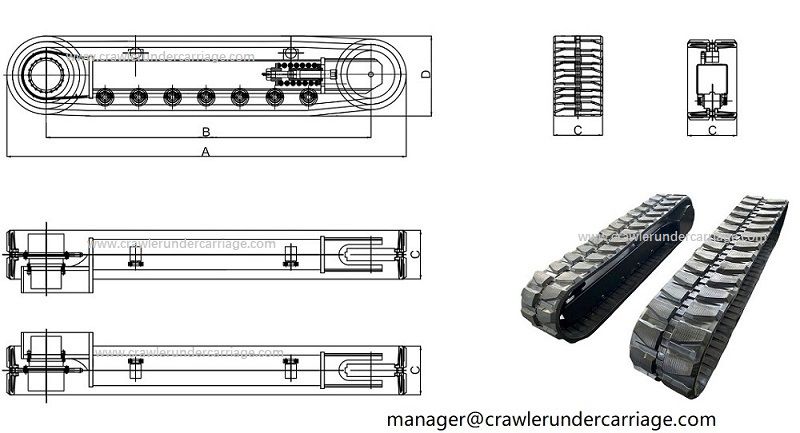

Dimensions (mm)：2900x320x560
Load capacity (ton): 4
Weight(kg):1280
Width of Steel track (mm): 320
Speed(km/h): 2-4
Climbing ability : ≤30°

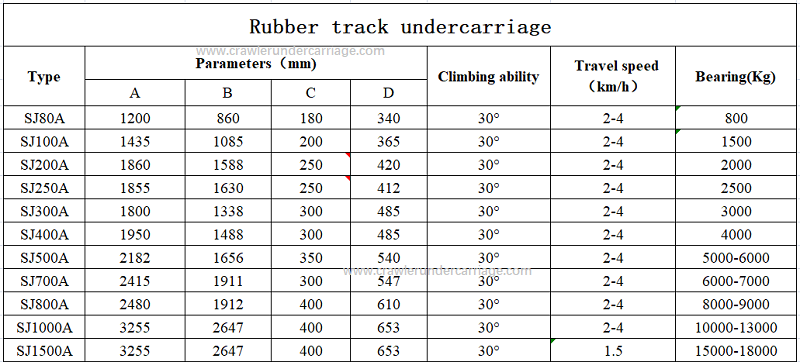

Parameter
The rubber track undercarriage mentioned above is single-sided by default; if you require another method of connection, add material costs in addition! China brand or other brand motors can be freely chosen, and they can be tailored to the customer's external measurements. Slewing bearings or slewing mechanisms, as well as central slewing joint, can be installed.
If you're in the market for a high-quality undercarriage for your drill machine, we'd be happy to assist you. We can customize a track undercarriage tailored to your needs. We're confident that once you receive our crawler undercarriage, you'll see that we're the right choice for you.
