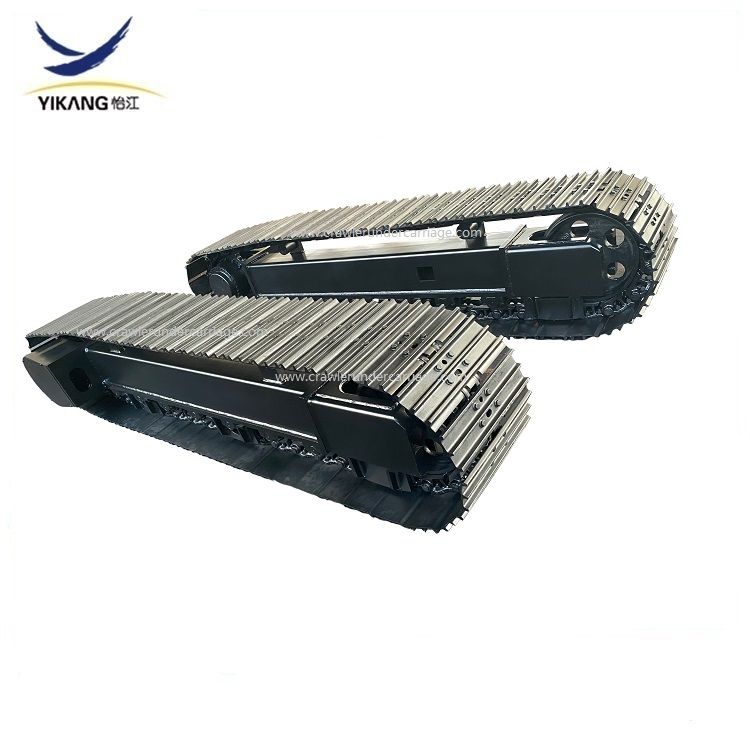

Customized crawler undercarriage system for mobile crushers
The crawler tracked undercarriage is designed for customization drilling rig ，the specific parameters are as follows:
Width of rubber track (mm) : 500
Load capacity (ton) : 20
Motor model : Negotiation domestic or Import
Dimensions （mm）: customized
Travel speed（km/h）: 0-1.5 km/h
Max grade ability a° : ≤30°
Brand : YIKANG or Custom LOGO for You
The steel track undercarriage mentioned above is single-sided by default; if you require another method of connection, add material costs in addition! Depending on the customer's given external dimensions, either a domestic or imported motor may be chosen at random. The addition of a slewing bearing or slewing mechanism, a central swivel joint, etc. The steel track can have rubber blocks placed to it to safeguard the road's surface.
Yijiang is your preferred partner for customized crawler undercarriage solutions for mobile crushers. Our expertise, dedication to quality, and factory-customized pricing make us an industry leader. Contact us today to learn more about customizing a track undercarriage for your mobile crusher. At Yijiang, you can expect the best.
The steel track undercarriage mentioned above is single-sided by default; if you require another method of connection, add material costs in addition! Depending on the customer's given external dimensions, either a domestic or imported motor may be chosen at random. The addition of a slewing bearing or slewing mechanism, a central swivel joint, etc. The steel track can have rubber blocks placed to it to safeguard the road's surface.
Yijiang is your preferred partner for customized crawler undercarriage solutions for mobile crushers. Our expertise, dedication to quality, and factory-customized pricing make us an industry leader. Contact us today to learn more about customizing a track undercarriage for your mobile crusher. At Yijiang, you can expect the best.
