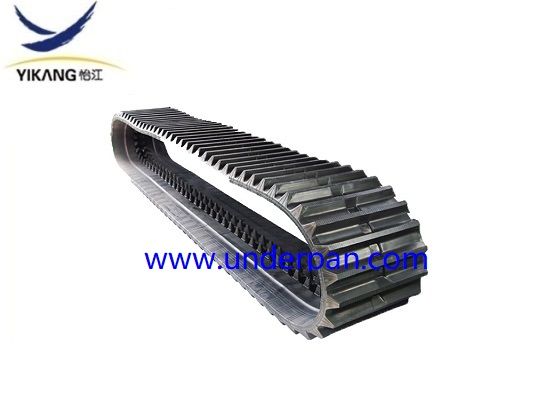

Morooka rubber track 600x100x80

Product description

1. Continuous rubber track.
2. Conventional type or interchangeable type rubber track.
3. Warranty: guarantee one year under normal use.
4. Application: mini-excavator, bulldozer, dumper, crawler loader, crawler crane, crawler carrier vehicle, agriculture machinery, paver and other special machine.

Morooka rubber track 600x100x80

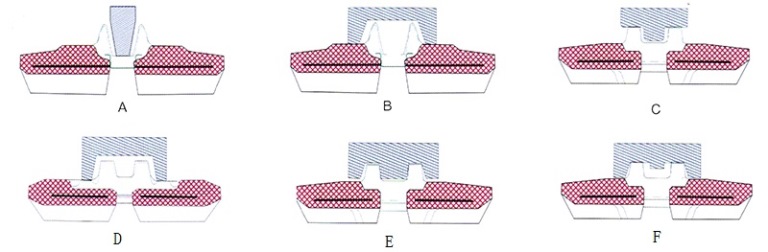

Roller type

Standard specification

Technical parameters

Spc.&Type	A	B	C	D	E	F	H	Pattern	Guide rail
150x60x	64	55	34	22	24	23	15	D	A.B
150x72x	65	50	38	23	30	30	16	E	A.B
180x60x	62	49	38	26	27	27	22	C	A.B
180x72x	65	50	38	25	29	31	15	A	A.B
K180x72x	60	53	33	24	21	16	16	V	B
190x72x	68	48	42	23	28	26	17	V	A.B
200x72x	65	50	36	26	29	24	15	V	A.B
K200x72x	65	51	39	22	30	27	16	B	B
230x48x	72	64	32	21	26	23	23	J	C
230x72x	80	55	41	24	27	29	14	A	A.B
230x96x	72	64	32	24	24	26	24	G	C
230x101x	78	66	32	26	23	29	24	W	C
250x47x	69	61	29	24	22	20	20	J
250x48.5x	66	58	32	24	20	24	24(18)	O	D.E
250x52.5x	74	63	36	30	23	26	23	O	C.E
250x52.5Kx	83	69	44	24	23.5	24.5	22		D
250x72x	80	62	41	26	29	30	17	G	A.B
Y260x96x	70	61	31	26	23	23	22	F	D
260x109x	84	76	36	32	24	28	24	P	C.E
280x72x	78	66	43	26	28	23	20	R	A
280x80x	70	53	37	22	28	27	26	T	A
280x90x	74	56	40	30	30	24	35	T	A
Y280x106x	80	70	36	39	28	28	24	I	D
A300x52.5x	83	72	36	32	26	19	23	H	C.E
B300x52.5x	94	84	46	43	24	20	24	H	C.E
K300x52.5x	83	76	36	33	27	25	19	J	D
300x53x	86	78	36	33	26	19	18	H	D
300x55x	86	74	38	35	28	28	24	H	C.E
300x55.5x	76	72	36	32	27	24	24	S	D
N300x109x	78	66	36	31	27	29	25	S	C.E
K300x109x	85	74	34	26	25	30	25	J	C
W300x109x	92	80	46	38	28	26	24	O	C.E
320x52.5x	82	71	34	30	23	20	22	S	C.E
320x54x	82	70	40	32	23	21	19	P	C.E
320x84x	100	80	63	46	48	38	24	K.L.R	A.B
320x86x	80	68	52	35	44	34	25	K.L.R	D
320x90x	94	65	47	34	45	38	30	K	B
320x100x	84	68	52	34	40	33	24	P	A.B
Y320x106x	78	68	36	30	32	29	24	I	D
350x52.5x	88	78	49	41	27	24	22	O	C.E
350x54.5x	92	83	47	40	24	22	23	O	D
350x56x	88	78	49	39	26	16	24	J	C.E
350x56Rx	88	80	48	40	25	16	24	J	D
350x75.5x	98	88	45	36	26	30	22(16)	N	D
350KBX90X	82	65	55	38	38	35	32	T.X	A
350*90	72	55	44	26	35	35	32	T.X	A
350YM*90	80	54	43	25	38.5	35	35	T.X	A
350x109x	88	79	45	41	27	24	23	I	C.E
370X107X	90	82	42	37	29	29	24	I	D
Y400X72.5X	94	83	43	38	28	26	24	O	D
A400X72.5X	90	88	44	40	27	25	22	O	E
B400X72.5X	108	100	58	48	25	24	24	O	E
400*72.5KW	112	102	53	46	23	23.5	24	O	E
K400x72.5x	87	76	46	40	29	29	24	H	E
R400x72.5x	118	106	58	50	27	28	24	O	E
400x73x	112	103	51	44	30	32	25	S	E
400x74x	100	90	47	39	26	30	25	O	E
400x75.5x	98	88	42	37	27	27	24(18)	N	D
400x86x	100	79	64	46	44	34	26
B400x90x	82	65	55	38	35	32	32	T.X	A
C400x90x	71	55	43	22	34	27	32	T.X	A
Y400x107x	90	82	44	39	29	29	24	I	D
K400x142x	90	80	34	28	30	28	24	I	C.E
Y400x144x	101	90	44	35	30	29	25	I	C.E
420x84x	69	50	48	38	37	32		T	A
425*90	88	67	53	39	40	33	33	T.X	A
420x100x	100	84	64	46	51	36	30	K	A
450x71x	110	97	52	41	30	26	28	O	C
450x73.5x	109	100	52	41	32	30	30	O	C
K450x76x	122	110	58	52	30	29	26	J	C
A450x81x	114	102	54	42	32	29	24	O	C
B450x81x	136	120	73	63	30	34	24	O	C
K450x83.5x	115	101	56	44	25	24	30	O	C
Y450x83.5x	116	102	50	40	24	25	30	Q	D
450x84x	102	81	65	44	47	33	28	K.L.R	A
450x86x	104			46	47	35	28	K.L.R	C
450YMx90x	80	67	53	40	37	35	40	T.X	A
450x90x	84	66	52	38	43	42	19	K	A
450x100x	102	80	64	46	51	47	38	K.L.R	A.B
K450x163x	114	96	54	43	31	29	30	I	D
485x92x	134	126	78	64	32	30		I	D
B500x90x	82	67	53	39	37	27.5	40	T.X	A
500x90x	100	78	62	46	50	37	30	K	B
500x92x	132	118	64	58	28	29	26	H	C
550X90	82	68	53	39	37	27.5	45	T.X	A
600x100x	112	84	64	45	60	52	38	R	B
600x150x	165	125	105	62	70	63	55	R	B
700x100x	112	90	70	53	74	60	35	R	B
750x150x	170	128	92	62	65	45	39	R	B
800x150x	143	94	75	62	54	40	39	R	B

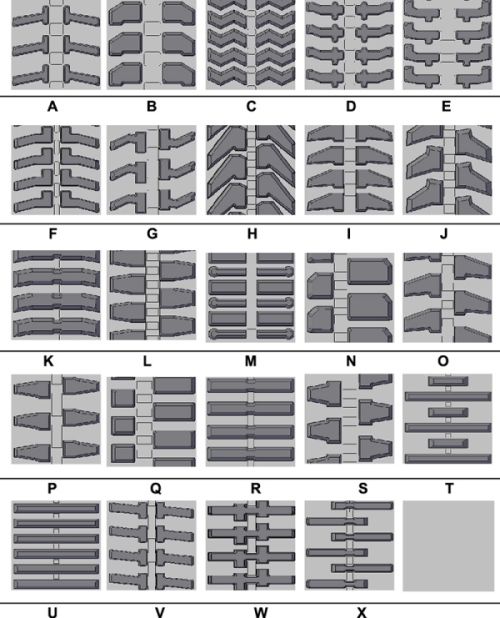

Pattern

Notice

1. Check rubber track's tension before installing it.A low tension may cause a drop-off of the rubber track in operation.Generally,check the center of the track can be pressed down 10-15 cm is available.
2. Avoid quick running and turning the machine in steep edge or under construction groud.
3. Keep rubber track’s surface clean.Pls wipe off immediately while it stained with oil.
4. Avoid friction between rubber track and other components of the machine,avoid damaging the rubber.
5. If the machine is unused for a long time,the rubber track should be cleaned and put it in ventilation shade.
6. The rubber track can operate normally under the temperature between -25℃~55℃.We will design it if you have special needs.

Packaging & Delivery

Packaging Details:Morooka rubber track 600x100x80 packing wooden pallet.
Delivery Time: Shipped in 30 days after payment.
