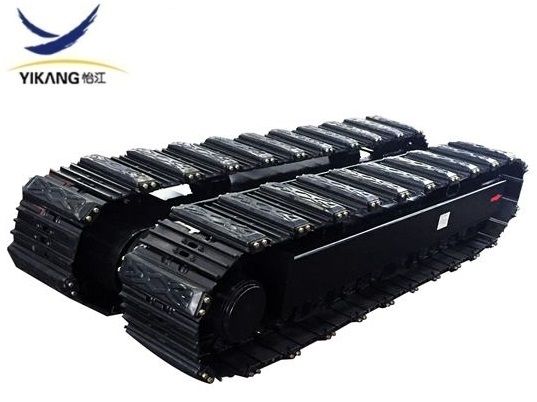

Mobile crusher rubber pads undercarriage

Product description

1. ISO9001 quality certificate.
2. Complete with steel track, track link , final drive, hydraulic motors, rollers, crossbeam.
3. Drawings are welcome.
4. Loading capacity can be from 0.5T to 150T.
5. We can supply both rubber track undercarriage and steel track undercarriage.
6. we can custom undercarriage from customers’ requestion.

We can recommend and assemble the suitable motor & drive equipment as customers’ request. We can design the whole undercarriage according to special requirement, such as measurements, carrying capacity, climbing etc. which facilitate the customers’ installation successfully.

Mobile crusher rubber pads undercarriage

Standard specification

Technical parameters

Type	Parameters（mm)					Track Varieties	Bearing(Kg)
Type	A	B	C	D	E	Track Varieties	Bearing(Kg)
SJ050	1200	900	900	150	300	rubber track	500
SJ080	1240	940	900	180	300	rubber track	800
SJ100	1380	1080	1000	180	320	rubber track	1000
SJ150	1550	1240	1000	200	350	rubber track	1300-1500
SJ200	1850	1490	1300	250	400	rubber track	1500-2000
SJ250	1930	1570	1300	250	450	rubber track	2000-2500
SJ300A	2030	1500	1600	300	480	rubber track	3000-4000
SJ300B	1895	1500	1700	300	485	steel track	3000-4000
SJ400A	2166	1636	1750	300	520	rubber track	4000-5000
SJ400B	1990	1600	1800	300	530	steel track	4000-5000
SJ500A	2250	1720	1800	300	535	rubber track	5000-6000
SJ500B	2118	1591	1800	300	550	steel track	5000-6000
SJ700A	2812	2282	1850	350	580	rubber track	6000-7000
SJ700B	2795	2265	1800	350	600	steel track	6000-7000
SJ800A	2880	2350	1850	400	580	rubber track	7000-8000
SJ800B	2880	2350	1850	400	600	steel track	7000-8000
SJ1000A	3500	3202	2200	400	650	rubber track	9000-10000
SJ1000B	3500	3202	2200	400	670	steel track	9000-10000
SJ1500A	3800	3802	2200	500	700	rubber track	13000-15000
SJ1500B	3800	3802	2200	400	700	steel track	13000-15000
SJ2000B	3805	3300	2200	500	720	steel track	18000-20000
SJ2500B	4139	3400	2200	500	730	steel track	22000-25000
SJ3500B	4000	3280	2200	500	750	steel track	30000-40000
SJ4500B	4000	3300	2200	500	830	steel track	40000-50000
SJ6000B	4500	3800	2200	500	950	steel track	50000-60000
SJ8000B	5000	4300	2300	600	1000	steel track	80000-90000
SJ10000B	5500	4800	2300	600	1100	steel track	100000-110000
SJ12000B	5500	4800	2400	700	1200	steel track	120000-130000
SJ15000B	6000	5300	2400	900	1400	steel track	140000-150000

Undercarriage specification

1. The undercarriage has forward, backward and turning function while undertaking the machine

2. The steel track is very hard and durable by quenching treatment. The rubber track is embedded with the iron core and steel cord, which help the machine to walk fast with low running noise, no damage to the pavement and less vibration.

3. Built with a low speed high torque motor and gear-box, the undercarriage can walk fast.

4. The frame is high intensity and strong tenacity.

5. The track roller and idle comprise the floating oil seal, it is free for maintenance and refueling

6. The track roller, top roller, idle and sprocket are all made of alloy steel with the quenching treatment, they are hard and wearable.

7. During the production, each step of welding is strict controlled to ensure horizontal and vertical.
8. The rollers assembling aimed to ensure carrying capacity with the good tensioning device.
