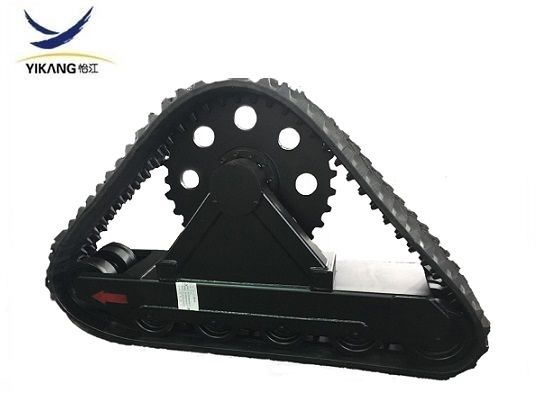

Havester rubber track undercarriage

Product description

Agricultural undercarriage is rubber track undercarriage, the scope of application as below:
All kinds of harvester, farmland transportation vehicle, crawler vehicle, and small crawler push machine, crawler engineering machine etc.

We can recommend and assemble the suitable motor & drive equipment as customers’ request. We can design the whole undercarriage according to special requirement, such as measurements, carrying capacity, climbing etc. which facilitate the
customers’ installation successfully.



Havester rubber track undercarriage


Standard specification






Technical parameters

Type Parameters´╝łmm) Track varieties Bearing(Kg)
A B C D E
SJ050 1200 900 900 180 300  rubber track  500
SJ080 1240 940 900 180 300  rubber track  800
SJ100 1380 1080 1000 180 300  rubber track  1000
SJ150 1550 1240 1000 200 310  rubber track  1300-1500
SJ200 1850 1470 1300 280 360  rubber track  1500-2000
SJ250 1930 1570 1300 280 410  rubber track  2000-2500
SJ300A 2030 1500 1600 300 530  rubber track  3000-4000
SJ300B 1895 1500 1700 300 527  steel track 3000-4000
SJ400A 2166 1636 1750 350 560  rubber track  4000-5000
SJ400B 1990 1600 1800 300 560  steel track 4000-5000
SJ500A 2250 1720 1800 400 560  rubber track  5000-6000
SJ500B 2118 1591 1800 350 580  steel track 5000-6000
SJ700A 2812 2282 1850 400 580  rubber track  6000-7000
SJ700B 2795 2265 1800 400 630  steel track 6000-7000
SJ800A 2880 2350 1850 400 610  rubber track  7000-8000
SJ800B 2880 2350 1850 400 620  steel track 7000-8000
SJ1000A 3802 3202 2300 450 620  rubber track  9000-10000
SJ1000B 3802 3202 2300 400 650  steel track 9000-10000
SJ1500A 4402 3802 2500 450 650  rubber track  13000-15000
SJ1500B 4402 3802 2500 450 700  steel track 13000-15000
SJ2000B 3805 2700 2500 600 800  steel track 18000-20000
SJ2500B 4139 3289 2500 600 850  steel track 22000-25000

 Agricultural rubber track undercarriage:

1. Cheap cost.
2. Light weight.
3. Drive device,the market main use old tractor gear-box,the structure is old,low precision,heavy  abrasion,it will have some trouble when use long time.And the ground    clearance is small,two rubber tracks can't turn at the same time, and the turning radius is large.
4. Agricultural rubber track generally use 90 pitch,its weight is light and thin,easy to wear, suitable for water field, dry land, grassland, relatively wear small place.
5. Roller in it all in small shape,samll load capacity,and should be maintained often.
6. Tension device  generally adopt the screw tensioning, long time use easy to rust corrosion, the tightening effect is poor, easy to strip off, no buffer, the impact   on the structural parts is larger.
7. Truck frame is thin,poor impact resistance, so spare parts easy  broken.
