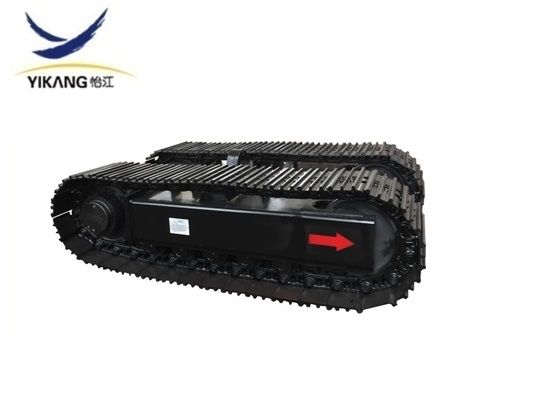

Prospecting machine undercarriage of steel track
Product description1. ISO9001 quality certificate.
2. Complete with steel track, track link , final drive, hydraulic motors, rollers, crossbeam.
3. Drawings are welcome.
4. Loading capacity can be from 0.5T to 150T.
5. We can supply both rubber track undercarriage and steel track undercarriage.
6. we can custom undercarriage from customers’ requestion.
We can recommend and assemble the suitable motor & drive equipment as customers’ request. We can design the whole undercarriage according to special requirement, such as measurements, carrying capacity, climbing etc. which facilitate the customers’ installation successfully.
2. Complete with steel track, track link , final drive, hydraulic motors, rollers, crossbeam.
3. Drawings are welcome.
4. Loading capacity can be from 0.5T to 150T.
5. We can supply both rubber track undercarriage and steel track undercarriage.
6. we can custom undercarriage from customers’ requestion.
We can recommend and assemble the suitable motor & drive equipment as customers’ request. We can design the whole undercarriage according to special requirement, such as measurements, carrying capacity, climbing etc. which facilitate the customers’ installation successfully.
Prospecting machine undercarriage of steel track
Standard specification
Technical parameters
Type | Parameters(mm) | Track Varieties | Bearing(Kg) | ||||
A | B | C | D | E | |||
SJ050 | 1200 | 900 | 900 | 150 | 300 | rubber track | 500 |
SJ080 | 1240 | 940 | 900 | 180 | 300 | rubber track | 800 |
SJ100 | 1380 | 1080 | 1000 | 180 | 320 | rubber track | 1000 |
SJ150 | 1550 | 1240 | 1000 | 200 | 350 | rubber track | 1300-1500 |
SJ200 | 1850 | 1490 | 1300 | 250 | 400 | rubber track | 1500-2000 |
SJ250 | 1930 | 1570 | 1300 | 250 | 450 | rubber track | 2000-2500 |
SJ300A | 2030 | 1500 | 1600 | 300 | 480 | rubber track | 3000-4000 |
SJ300B | 1895 | 1500 | 1700 | 300 | 485 | steel track | 3000-4000 |
SJ400A | 2166 | 1636 | 1750 | 300 | 520 | rubber track | 4000-5000 |
SJ400B | 1990 | 1600 | 1800 | 300 | 530 | steel track | 4000-5000 |
SJ500A | 2250 | 1720 | 1800 | 300 | 535 | rubber track | 5000-6000 |
SJ500B | 2118 | 1591 | 1800 | 300 | 550 | steel track | 5000-6000 |
SJ700A | 2812 | 2282 | 1850 | 350 | 580 | rubber track | 6000-7000 |
SJ700B | 2795 | 2265 | 1800 | 350 | 600 | steel track | 6000-7000 |
SJ800A | 2880 | 2350 | 1850 | 400 | 580 | rubber track | 7000-8000 |
SJ800B | 2880 | 2350 | 1850 | 400 | 600 | steel track | 7000-8000 |
SJ1000A | 3500 | 3202 | 2200 | 400 | 650 | rubber track | 9000-10000 |
SJ1000B | 3500 | 3202 | 2200 | 400 | 670 | steel track | 9000-10000 |
SJ1500A | 3800 | 3802 | 2200 | 500 | 700 | rubber track | 13000-15000 |
SJ1500B | 3800 | 3802 | 2200 | 400 | 700 | steel track | 13000-15000 |
SJ2000B | 3805 | 3300 | 2200 | 500 | 720 | steel track | 18000-20000 |
SJ2500B | 4139 | 3400 | 2200 | 500 | 730 | steel track | 22000-25000 |
SJ3500B | 4000 | 3280 | 2200 | 500 | 750 | steel track | 30000-40000 |
SJ4500B | 4000 | 3300 | 2200 | 500 | 830 | steel track | 40000-50000 |
SJ6000B | 4500 | 3800 | 2200 | 500 | 950 | steel track | 50000-60000 |
SJ8000B | 5000 | 4300 | 2300 | 600 | 1000 | steel track | 80000-90000 |
SJ10000B | 5500 | 4800 | 2300 | 600 | 1100 | steel track | 100000-110000 |
SJ12000B | 5500 | 4800 | 2400 | 700 | 1200 | steel track | 120000-130000 |
SJ15000 | 6000 | 5300 | 2400 | 900 | 1400 | steel track | 140000-150000 |
Construction machinery undercarriage, adaptive scope is:
1. Drill Class:anchor rig、water-well rig、core drilling rig、Jet grouting rig、down-the-hole drill、crawler hydraulic drilling rig、pipe roof rigs and other trenchless rigs.
2. Construction Machinery Class: mini- excavators、mini piling machine、 exploration machine、aerial work platforms、small loading equipment, etc.
3. Coal Mining Class:grilled slag machine、 tunnel drilling、 hydraulic drilling rig,、hydraulic drilling machines and rock loading machine etc.
4. Mine Class: mobile crushers、heading machine、transport equipment, etc.
5.Other Class: fire-fighting robot、underwater dredging equipment、cane harvester.
5.Other Class: fire-fighting robot、underwater dredging equipment、cane harvester.
