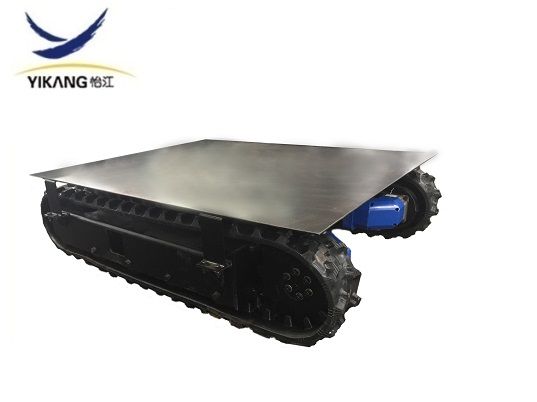

Orchard spray equipment undercarriage
Product descriptionAgricultural undercarriage is rubber track undercarriage, the scope of application as below:
All kinds of harvester, farmland transportation vehicle, crawler vehicle, and small crawler push machine, crawler engineering machine etc.
We can recommend and assemble the suitable motor & drive equipment as customers’ request. We can design the whole undercarriage according to special requirement, such as measurements, carrying capacity, climbing etc. which facilitate the customers’ installation successfully。
Orchard spray equipment undercarriage
Standard specification
Technical parameters
Type | Parameters(mm) | Track varieties | Bearing(Kg) | ||||
A | B | C | D | E | |||
SJ050 | 1200 | 900 | 900 | 180 | 300 | rubber track | 500 |
SJ080 | 1240 | 940 | 900 | 180 | 300 | rubber track | 800 |
SJ100 | 1380 | 1080 | 1000 | 180 | 300 | rubber track | 1000 |
SJ150 | 1550 | 1240 | 1000 | 200 | 310 | rubber track | 1300-1500 |
SJ200 | 1850 | 1470 | 1300 | 280 | 360 | rubber track | 1500-2000 |
SJ250 | 1930 | 1570 | 1300 | 280 | 410 | rubber track | 2000-2500 |
SJ300A | 2030 | 1500 | 1600 | 300 | 530 | rubber track | 3000-4000 |
SJ300B | 1895 | 1500 | 1700 | 300 | 527 | steel track | 3000-4000 |
SJ400A | 2166 | 1636 | 1750 | 350 | 560 | rubber track | 4000-5000 |
SJ400B | 1990 | 1600 | 1800 | 300 | 560 | steel track | 4000-5000 |
SJ500A | 2250 | 1720 | 1800 | 400 | 560 | rubber track | 5000-6000 |
SJ500B | 2118 | 1591 | 1800 | 350 | 580 | steel track | 5000-6000 |
SJ700A | 2812 | 2282 | 1850 | 400 | 580 | rubber track | 6000-7000 |
SJ700B | 2795 | 2265 | 1800 | 400 | 630 | steel track | 6000-7000 |
SJ800A | 2880 | 2350 | 1850 | 400 | 610 | rubber track | 7000-8000 |
SJ800B | 2880 | 2350 | 1850 | 400 | 620 | steel track | 7000-8000 |
SJ1000A | 3802 | 3202 | 2300 | 450 | 620 | rubber track | 9000-10000 |
SJ1000B | 3802 | 3202 | 2300 | 400 | 650 | steel track | 9000-10000 |
SJ1500A | 4402 | 3802 | 2500 | 450 | 650 | rubber track | 13000-15000 |
SJ1500B | 4402 | 3802 | 2500 | 450 | 700 | steel track | 13000-15000 |
SJ2000B | 3805 | 2700 | 2500 | 600 | 800 | steel track | 18000-20000 |
SJ2500B | 4139 | 3289 | 2500 | 600 | 850 | steel track | 22000-25000 |
The Scope of application of track undercarriage
Our undercarriage is composed of track roller、top roller、idler、sprocket、tension device rubber track or steel track etc, it is manufactured with the new domestic technology, featuring compact structure, reliable performance, durability, convenient operation and low energy consumption. It is widely used in various drilling, mine machinery, fire-fighting robot, underwater dredging equipment ,aerial working platform, transport lifting equipment, agricultural machinery, garden machinery, special working machinery, field construction machinery, exploratory machinery, loader, static detection machinery, gadder , anchor machinery and other large, medium and small machinery.
